Подробная информация о продукте:
Оплата и доставка Условия:
|
| Размер: | 3 3/4" (95.3мм) ~26" (660.4мм) | Давление: | 2000-20000 psi |
|---|---|---|---|
| применение: | Хороший сверлить | Гарантия: | 1 год |
| материал: | Нержавеющая сталь | Цвет: | Красный, белый и подгонянный |
| Выделить: | 15000PSI Wellhead Casing Hanger,API Drilling Wellhead Casing Hanger,SS Wellhead Casing Hanger |
||
API Drilling Tools Wellhead Casing Hanger 15000PSI
Product Descrption

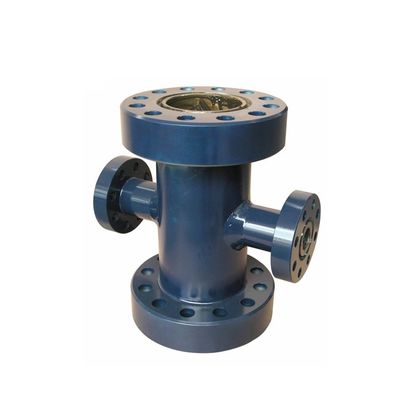

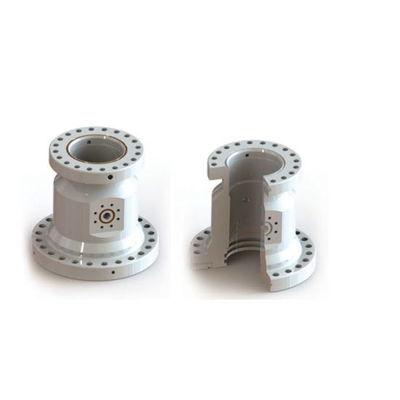

Accepting the type casing hangers, the standard head is an API standard. It eliminates the need for lockdown screws to retain the bowl protectors, creating fewer leak paths. The bottom prep of the casing head can be machined to fit a variety of applications. The straight bowl design prevents the wedge locking of bowl protectors, casing hangers, and test plugs, simplifying the installation process.

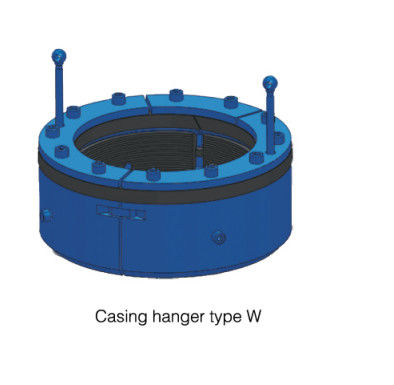

The casing hanger is placed in the cone seat of the lowest part of casing head or intermediate casing head to hang the following smaller casing string and make a seal for the hanging casing and casing head cone seat. It should be able to withstand the weight of the casing hanging. Therefore, the tensile load, the weight load from the pressure in the well casing, and radial load of the conical shoulder are the main loads of the hanger.
Basic Benefits of Our Wellhead Casing Hanger
Technical Parameters of TR Wellhead Casing Hanger
| Rated operating pressure psi(MPa) |
Nominal bore diameter in(mm) |
Bypass bore diameter in(mm) |
Outer diameter of the casing for the hangerin(mm) |
| 2000(13.8) | 11"~21 1/4" (280~540) |
1 13/16"~4 1/16" (46~103) |
5 1/2"~20" (139.7~508) |
| 3000(20.7) | 11"~21 1/4" (280~540) |
1 13/16"~4 1/16" (46~103) |
5 1/2"~20" (139.7~508) |
| 5000(34.5) | 11"~21 1/4" (280~540) |
1 13/16"~4 1/16" (46~103) |
5 1/2"~20" (139.7~508) |
| 10000(69.0) | 11"~21 1/4" (280~540) |
1 13/16"~4 1/16" (46~103) |
5 1/2"~20" (139.7~508) |
| 15000(103.5) | 11"~21 1/4" (280~540) |
1 13/16"~4 1/16" (46~103) |
5 1/2"~20" (139.7~508) |
| 20000(138.0) | 11"~21 1/4" (280~540) |
1 13/16"~4 1/16" (46~103) |
5 1/2"~20" (139.7~508) |
We Xi'an TianRui Petroleum Machinery Equipment Company Limited was established in 2010 and located in Xi'an city of China. We have specialized technicians, senior engineers and professional marketing team. We have been serving oilfield from past 10 years, and established a solid partnership and network with quality OEM factories.
Our Service
1. We possess a 24 hr response system to provide convenient, fast, and effective pre-sale, during sale and after-sale service.
2. Our promise: Any equipment sold by TR Solids Control at any place in the world, we will provide after-sale service promptly and efficiently. Any equipment component damaged by manufacturing defect or quality problem during the warranty period, we will bear the direct cost of the damaged parts.
3. Warranty period: 18 months from the day that the unit leaves factory or 12 months from the date that the unit is put into use (choose the earliest one which comes to an end as the calculation standard).
Competitive Advantages
1. We offer high quality products at competitive price.
2. Shortest delivery time.
3. Flexible payment terms.
4. Timely after-sale service.
5. Most of our equipment can be replaceable with international brands.
6. Our products have been exported to Argentina, Egypt, US, Australia, Romania, Pakistan, Dubai, Abu Dhabi, Iran, India, Indonesia, Vietnam, Malaysia and many other countries.
