Подробная информация о продукте:
Оплата и доставка Условия:
|Давление:||5000 пси||Цвет:||Красный цвет, белый|
|Упаковка:||Деревянная коробка||Средство:||Масло, вода, газ, грязь|
|Температура:||°C -46°C ~121||Материальный уровень:||AA, BB, CC, DD, EE|

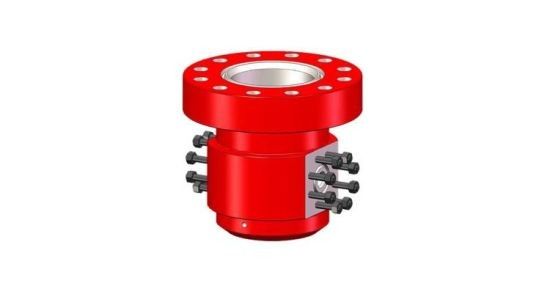

API 6A Oilfield Tubing Head,
PR2 Oilfield Tubing Head,
5000 Psi API Tubing Head
API 6A Oilfield Equipment Tubing Head and Wellhead Equipment
Tubing head (n.) – Equipment attached to the casing spool used to hang the tubing (smallest casing string) and seal the annulus between the tubing and casing.
The top spool on a wellhead assembly contains the highest pressure in the wellhead, and contains a load shoulder to hang the tubing hanger and tubing string. When the well is completed, the tree is installed on top of the head with a tubing head adapter. Providing a means to support and test the BOPs while completing the well, the tubing head is a necessary component when drilling and completing a well. The standard tubing head product line combines a straight-bore profile with a varied number of aligning pins, depending on the chosen model. FMC’s tubing heads eliminate the “wedge-locking” of the bowl protector, BOP test plugs, and tubing hangers. As additional advantages, valve removal (VR) threads are standard on all flanged or studded tubing head outlets, and if a 9” or larger top flange is required, the C-29 casing hanger can be used for casing-type completions.
Features of TR Wellhead Tubing Head
1)Made from high-strengh alloy and processed specially with heating treatment.
2)Designed and manufactured with reference to API 6A technical specifications.
3)Fit for Hydrogen sulfide H2S resistant service, manufactured with reference to NACEMR 0175 technical specifications.
4)Top & bottom connections and outlets per customer design requirements by either flanged or clamp connections.
5)All stell tanks are welded with staintess stell for long-term anti-corrosion.
6)Used for high-pressure drilling, in conjunction with flat valve for preventing blowout and connecting BOP.
Technical Specifications of TR Wellhead Tubing Head
Xi'An TianRui Petroleum Machinery Equipment Company was founded in 2010, Xi'an city of China. Oil machinery is our main products, the leading products include solid control equipment, pumping unit, subsurface sucker rod pump, wellhead (Christmas Tree), pressure vessels, drilling downhole products and cementing accessories.
We must develop new technologies and new products for our clients, and make our popularity on a high level in this field; we must heighten our position and set a good example in the field. A group of experienced staff are ready to serve you with enthusiasm at any moment!
1. We offer high quality products at competitive price.
2. Shortest delivery time.
3. Flexible payment terms.
4. Timely after-sale service.
5. Most of our equipment can be replaceable with international brands.
6. Our products have been exported to Argentina, Egypt, US, Australia, Romania, Pakistan, Dubai, Abu Dhabi, Iran, India, Indonesia, Vietnam, Malaysia and many other countries.
Контактное лицо: Sales Manager
